Introducing AmeriLux™ — Where Safety Meets Style. The Amerilux Ultra Low Sleep System from Graham Field Basic American Model ALX36. is the ultimate in Senior care Hilow bed design.  All Basic American Beds have these Key differentiators from our competitors.  These beds are made in the USA to exacting standards. Built to withstand trouble-free use for many years  Frames features SilverSolutions* within the powder-coating provides antimicrobial surface protection for your residents.  Ships freight additional.  A + Value. On sale now for a limited time.

Included Options

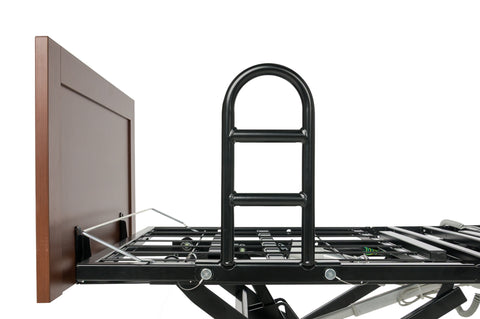

Fixed Hand rail (Swing rail is available upon request (not available with side panels)

Matching Side finish panels with attached Headboard/Footboard Standard with Crescent shape with Cap Style. Optional HB/FB designs are available on request. Just call us.  If a staff control is required please add as a separate item in the cart.

VIDEO LINK https://youtu.be/hs5SByme8RM?si=P1DJrThUEmGRkTiJ

Standard features of the Amerilux Ultra Low Sleep System

Made in the USA • Minimal lead times • Quality craftsmanship and manufacturing

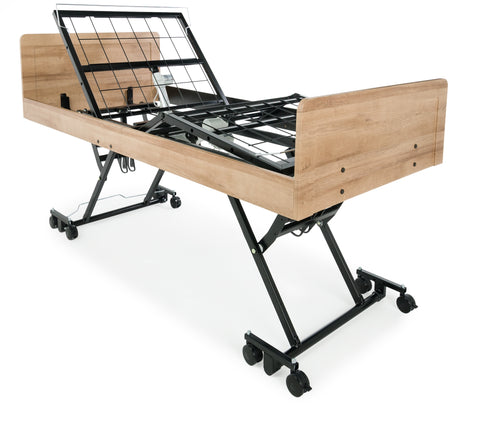

Ultra–Low Technology   • Adjustable height from floor level at 4 inches to nursing height at 30 inches • Bed electronics feature full floor clearance, preventing floor contact vs similar models offered by competitors • Available as 36 inch width or 42 inch width bed • Sleek, black frame • Advanced Positioning System (APS) includes One-Button Comfort/Cardiac Chair Position  (Embedded staff control in footboard allows Trendelenburg/Reverse Trendelenburg)

Customizable Design Options • Creative flexibility to align seamlessly with your design aesthetic • Personalization by adding wooden side boards for a cozy, home-inspired feel • Offered in various board styles & multiplies finishes, with the possibility of custom styles or finishes upon request

Footboard Bed Extension is included.  Extends from 87 1/2" to 91 1/2"

Offered in 10 finishes- Seamless 3DL laminates are the best for washdown and durability

SilverSolutions™ • Located in the powder-coating which provides antimicrobial surface protection • Deters the growth of odor-causing bacteria

Sealed Ball Bearings • Allows seamless, continuous, and noiseless movement • Maintenance Free

Optional ‘Plug and Play’ digital electronics enable future feature additions • Staff Control for Trendelenburg and Reverse Trendelenburg • Under-Bed Light • USB Charger

Caster locking system • Four locking casters (standard) • Easily visible and accessible at ALL heights and widths

Industry-leading, energy-saving electronics • Reduces Energy Consumption Grounded bed with right-angle hospital grade plug • Provides added safety for both staff and residents

US Patented design of high/low mechanism • Housed with the mainframe tubes; no holes are  located on the top side that will harbor bacteria Grid sleep surface with cross braces • Sturdy, no-sag sleeping surface

Specification- MECHANICAL AND ELECTRICAL INFORMATION AMERILUX ALX SERIES-MECHANICAL Specification 36" 42"

Bed Length  87.5 or 91.5  Width Including Boards 36" 42"

Maximum Height (floor to top of mattress support deck) 30" 30"

Minimum Height (floor to top of mattress support deck) 4.95" 4.95"

Maximum Head / Back Deck Angle 65° 65°

Maximum Knee / Foot Deck Angle 30° 30°

Maximum Trendelenburg / Reverse Trendelenburg Angle 15° 15°

Maximum Safe Working Load WITH WEIGHT EVENLY DISTRIBUTED - includes bedding, resident / patient, support surface, and accessories 550 lb (249.5 kg) 550 lb (249.5 kg)

Bed Mass (without assist devices or boards) 183 lb (83 kg) 190 lb (86 kg) AMERILUX

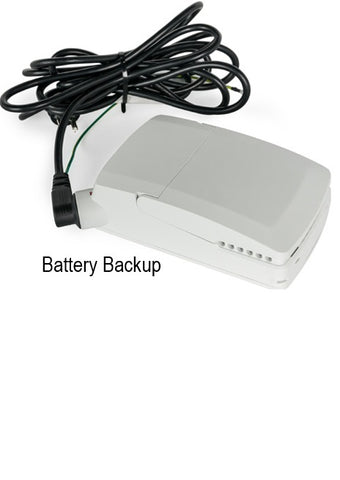

ALX SERIES-ELECTRICAL Power / Frequency 120 Volt ~ / 50/60 Hz Output Rating 24 Vdc Maximum Amperage 4.5 Amps Power (Electrical) Cord #18 AwG 3 Conductor Type SJT Mode of Operations 10% max. Duty Cycle (2 minutes on / 18 minutes off) Battery Pack and Charger can be purchased separately as accessories.

Warranty

• Main Frame & Welds: 12 years
• Control Box & Actuator Motors: 5 years
• Hand Control Pendant & Cabling: 3 years
• Staff Control & Cabling: 3 years
